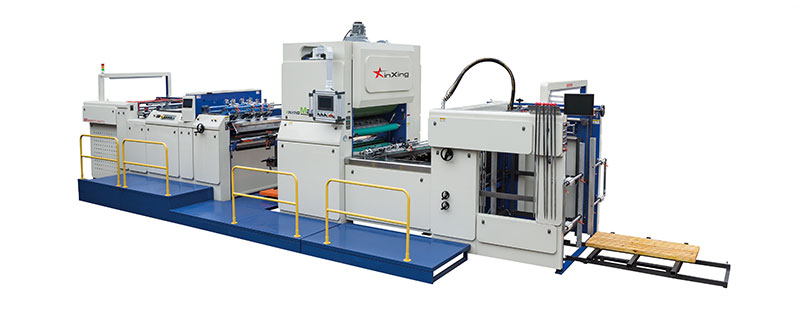

Product Description

1.Automatic Feeder: Adopts offset feeder with advanced pneumatic side lay, which fastest can feed around 15000 sheet/h. Non-stop and pre-stack feeding can improve work efficiency.

2.Overlapping Regulator: Adopts Servo system to control the overlapping that guarantee accurate and stable, and make sure the overlap error within 2mm.

3. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, Large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

4.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

5. Three rows chain Driving System: Special structure design in minimum transmission line, adopts three rows chain to drive the laminating unit to guarantee the high laminating speed with low noise.

6. Pneumatic Pressure System: fully pneumatic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

7.Man-Machine Interface System: Advanced 10inch color screen with PLC system make the operation easy and convenient.

8.Flying Knife: Adopts imported ultrasonic probe with German chain, servo control system with high accuracy.

9. Anti-Curvature Device: Avoid paper curvature and make the paper smooth, especially for thin paper.

10. Corrugated Delivery: Better and easier for collecting paper.

11 Car Body: Whole machine cover adopts car body, glossy and wear-resisting.

12 Automatic Stacker: Full automatic with sensor to rise and down the paper pile, heighten structure that can load paper pile height in 1060mm, side and front tidy devices to make sure paper pile collect well.

Technical Parameters

Max. sheet size	1080*1000mm
Min. sheet size	350*295mm
Paper thickness	Standard laminating 80-500Gsm Window laminating >127gsm
Height of feeding pile	1060mm
Height of stacker pile	1060mm
Machine speed	105m/min
Working speed	Glue laminating: 80-100m/min Thermal laminating: 80-100m/min Window laminating: 50m/min
Machine power	100kw
Working power	25-40kw/h
Dimension of machine	L16000×W2800×H3100mm
Machine weight	13000kg

Component Introduction

1. Automatic Feeder

We adopt offset feeder head (max speed 15000sheet/ hour), that makes the sheet feed more stable and smooth. The feeder is non-stop type with pre-stack guide device, which can keep the machine running when run out the paper pile. German Becker vacuum pump guarantee the stable feeding.

2. Sheet Delivery Platform

Servo system to control the side lay and front lay connect with feeder in high precision, that guarantee the overlapping error within 2mm.
Moveable gear adjustment sheet deliver table that convenient for different sheet size

3. Laminating Unit

Heating roller by electromagnetic heating plus oil heating, double heating systems guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.

Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform and easy to adjust without bubbles、spots or wrinkle.

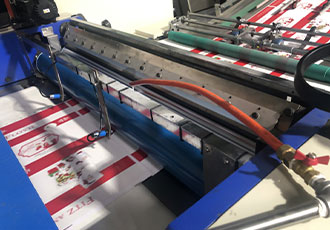

4. Glue Coating unit

High precision processing double metal rolls glue coating system to support low glue consumption (2-4g/m2)

Adjustable glue coating quantity to match different materials and running speed.

Outside moving glue coating unit: the glue coating rolls are moved outside of machine (drying unit), so the glue will not dry on rolls because of hot air.

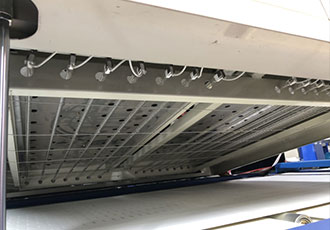

5. Drying system

Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power consumption.

Blowing fans plus exhaust fan recycle the hot air and energy saving

Teflon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain.

6. Film Unwinding

Install air shaft for film unwinding with auto tension controller. Special design for big diameter film roll and the roll can be adjusted to right and left.

7. Waste Film Slitting and Rewinding

Moveable waste film rewinding to modify the jumbo film width that can fit for paper sheet size.

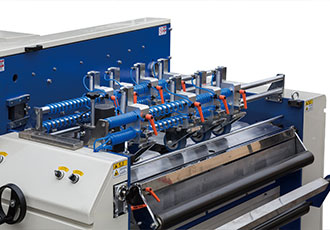

8. Disc Cutter With Pneumatic System

Multiple blades disc cutter for BOPP film with pneumatic sheet separating, that makes the laminated sheets without margin, and prepare for next process.

Two sheeting roll system can effectively sheet paper, special concave-convex roll make sheet smoothly and antislip.

9. Sand Wheel

Sand wheel instead of disc cutter for middle side film lamination, that prepare for pneumatic sheeting.

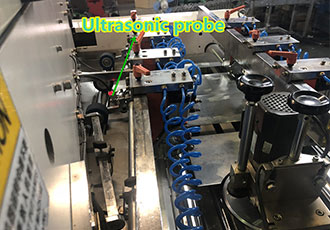

10. Flying Cutter

We adopt big chain knife that it work in low rotate speed but with great line cutting speed

Imported German ultrasonic probe with German chain, servo control system with high accuracy.

Touch screen connect with PLC system that keep same step with main machine.

11. Three rows chain with gear box driving system

For the main laminating part adopts three rows chain with gear box driving system, that support machine run in high speed with high precision and low noise.

This structure also support machine run in long time but keep stability.

12. Pneumatic guiding system

Removable guide wheels with pneumatic system to adjust the pressure that easy to operate and maintain.

13. Corrugated Delivery

Corrugated delivery with conveyor belt that better and easier for collecting paper.

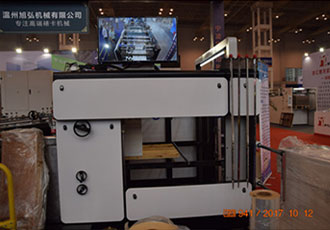

14. Automatic Stacker

Fully automatic with sensor to rise and down the paper pile

Heighten structure that can load paper pile height in 1060mm

Side and front tidy devices to make sure paper pile collect well.

15. Hydraulic lifting for loading film roll

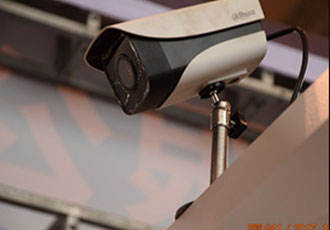

16. Monitor

Designed for one machine one operator, that could check whole machine running.

17. Window laminating function

Three Servo systems in window laminating unit

Openable pneumatic drying tunnel to guarantee security and easy for cleaning and maintaining. Servo system with synchronous belt to control the glue coating head that make sure the coating uniform. Forward and reverse rotary rolls easy for washing roll.

Sensitive Imported sensor to make sure paper deliver smooth.

Customized IR lamps that save a lot power consumption and drying fast
