Product Description

1. Shaftless Unwinding: The unwinder adopts shaftless feeding system that both suitable for 3inch and 6inch paper core and could support big jumbo roll. Shaftless unwinder is easy for loading and unloading.

2. Compact machine structure design that would easy for cross the paper materials in machine and save the materials waste.

3.. Ultrasonic web guide system. Adopt sensitive ultrasonic web guide system make sure material cut in high precision

4.Teflon coated drying roll: Exclusive treatment of drying roll with Teflon coating that make the roll surface smooth and glue stickless. Compare with chrome plate, the temperature will more balanced.

5.Double metal roll glue coating system: High precision treatment double rolls coating system with Rubber blade (metal blade) that could available for various glue, and also save a lot glue (3-4g/m2)

6. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

7.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

8. Three rows chain Driving System: Special structure design in minimum transmission line, adopts three rows chain to drive the laminating unit to guarantee the high laminating speed with low noise.

9. Pneumatic Pressure System: fully pneumatic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

10.Man-Machine Interface System: Advanced 10inch color screen with PLC system make the operation easy and convenient.

11. Automatic tension system: The machine comes with auto tension system to control the jumbo materials. And adopts independent tension system for film roll.

12. Rewinder: Thicken machine body to support big rolls and make sure the rewinded materials roll edge flat and smooth

13.Dance roll: displacement sensor to control the whole traction section

14.Label insert system: Auto label insert with counting

15.Auto stacker: auto stacker device that could collect cut sheets automatically with auto lifting as height of paper pile.

Technical Parameters

Model	ZFM-1100JZ	ZFM-1300JZ	ZFM-1500JZ
Max. width	1050mm	1250mm	1450mm
Working speed	80-100m/min	80-100m/min	80-100m/min
Paper thickness	80-500gsm	80-500gsm	80-500gsm
Total power	45kw	48kw	55kw
Diameter of unwinding	1400mm	1400mm	1400mm
Cutting Length	300-1200mm	300-1200mm	300-1200mm
Cutting Speed	30-150times/min	30-150times/min	30-150times/min
Accuracy Of Cutting	±0.2mm	±0.2mm	±0.2mm
Overall dimension	1150033003100mm	1150033003100mm	1150033003100mm
Machine weight	10000kg	11500kg	13000kg

Component Introduction

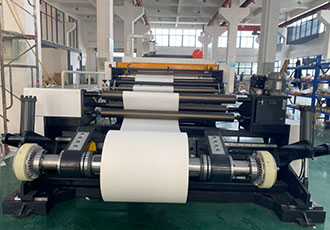

1. Shaftless with Hydraulic Lifting

Shaftless unwinder system that easy for loading and unloading jumbo roll and load-bearing 2000kg big roll.

Hydraulic moving and lifting system

Magnetic powder tension control system

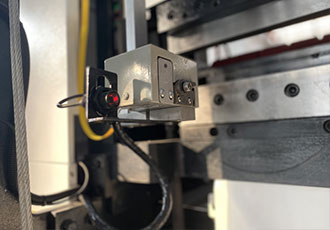

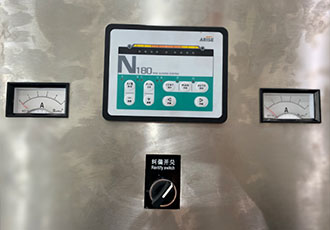

2. Web guide system

Machine adopts ultrasonic web guide system.

3. Slitting function (three knives)

Three slitting blades that can move anywhere as requirements.

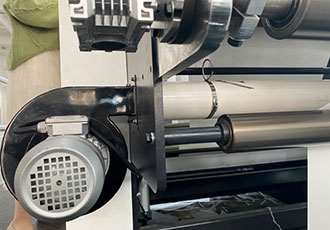

Waste materials blowing system

4. Dance roll

Encode system with displacement sensor to control the whole traction section

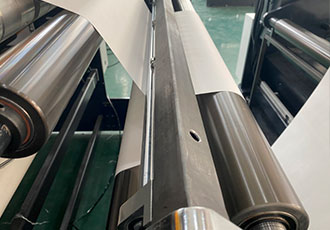

5. Anti-curve device

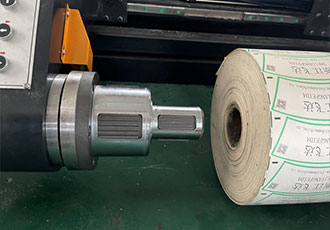

Shaftless unwinder suitable for 3inch and 6inch

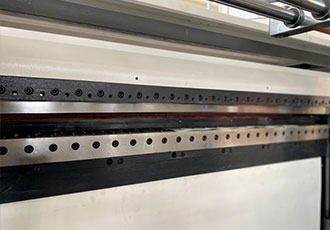

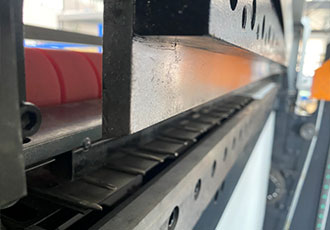

6. Cutting unit

The cutting blades are under quenching treatment that guarante the service life.

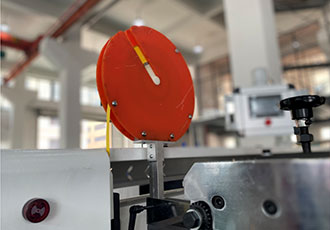

7. Label insert system

Set label paper to the fixed number that easy for future counting

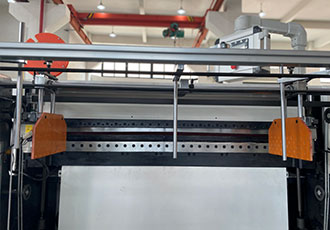

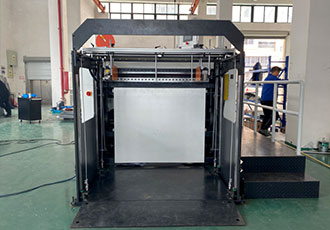

8. Auto Stacker

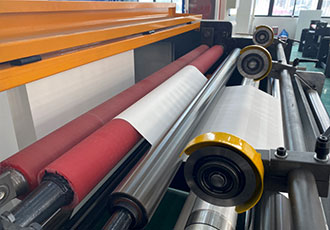

9. Laminating Unit

Heating roller by electromagnetic heating plus oil heating, double heating systems guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.

Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform and easy to adjust without bubbles、spots or wrinkle.

10. Glue Coating unit

High precision processing double metal rolls glue coating system to support low glue consumption (2-4g/m2)

Adjustable glue coating quantity to match different materials and running speed.

Outside moving glue coating unit: the glue coating rolls are moved outside of machine (drying unit), so the glue will not dry on rolls because of hot air.

11. Drying system

Special design IR lamps set inside of drying roll, that make the glue drying fast but with low power consumption.

Blowing fans plus exhaust fan recycle the hot air and energy saving

Teflon coating surface to uniform the temperature and glue Sticking prevention that easy for cleaning and maintain.

12. Film Unwinding

Install air shaft for film unwinding with auto tension controller. Special design for big diameter film roll and the roll can be adjusted to right and left..

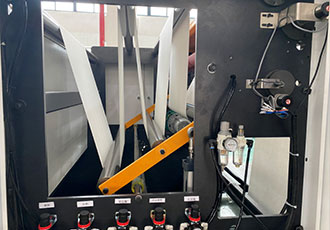

13. Waste Film Slitting and Rewinding

Moveable waste film rewinding to modify the jumbo film width that can fit for paper sheet size.

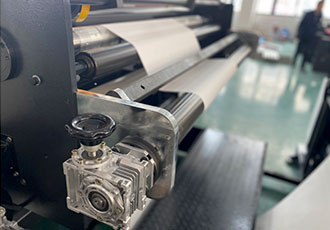

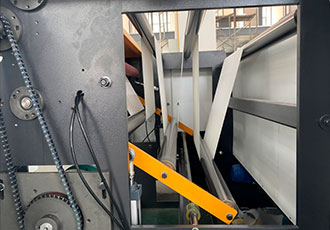

14. Three rows chain with gear box driving system

For the main laminating part adopts three rows chain with gear box driving system, that support machine run in high speed with high precision and low noise.

This structure also support machine run in long time but keep stability.

15. Fully Pneumatic laminating pressure system

The machine use pneumatic pressure for laminating pressure that would guarantee laminating effect, also have sensitive pressure adjustment and keep machine running in clean condition.
