Product Description

1.Side Guide Board: Easy adjustment side guide boards in double sides, that can control the side error in 0.5mm

2.Photocell eye: The machine comes with front and back photocell eyes, that can control the two sides sheet deliver at same time

3.Front Lay: Automatic front lay system that can control paper sheet feed, and make sure the front error in 0.2mm.

4.Registration roller: The diameter is 320mm, and there are three stands in side.The thickness of roller is 25mm, and undergoes heat treatment and 0.12mm thick chrome layer on the surface of roller, that make sure the rolls can run long time without shape change

5.Solid Press Roll: Big diameter press roll in 160mm diameter, 4 pieces to make the laminating effect.

6.The rubby roller is abrasion proof and corrosion resistant. Hydraulic system to control the laminating pressure.

7.Our machine adopts Cylindrical Roller bearing, that makes the machine run in steady state

8.Special design that makes machine easy to adjust when change the sheet thickness.

Technical Parameters

Model	KFMJ-1150D
Max Paper Size(mm)	1100x680
Min Paper Size(mm)	320x320
Paper Thickness(GSM)	120-1500g Two sheets Max 3.6mm One sheet Max 2.2mm Two sheet better >450gsm
Laminating Speed(Pieces/Min)	4-45
Laminating Accuracy(mm)	0.1-0.3
Motor Power(Kw)	2.2
Machine Weight(Kg)	2800
Overall Dimension(mm)	203017001700
Packaging Dimension(mm)	217019901950

Component Introduction

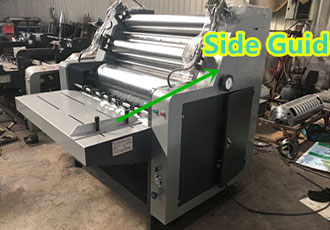

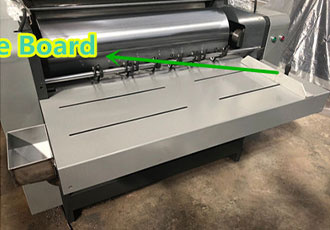

1.Side Guide Board

Easy adjustment side guide boards in double sides, that can control the side error in 0.5mm

2. Photocell eye

The machine comes with front and back photocell eyes, that can control the two sides sheet deliver at same time

3. Front Lay

Automatic front lay system that can control paper sheet feed, and make sure the front error in 0.2mm.

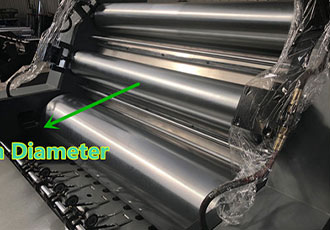

4. Registration roller

The diameter is 320mm, and there are three stands in side.The thickness of roller is 25mm, and undergoes heat treatment and 0.12mm thick chrome layer on the surface of roller, that make sure the rolls can run long time without shape change

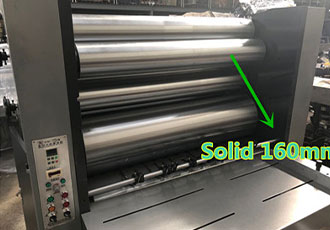

5. Solid Press Roll

Big diameter press roll in 160mm diameter, 4 pieces to make the laminating effect.

6. The rubby roller is abrasion proof and corrosion resistant. Hydraulic system to control the laminating pressure.

7. Our machine adopts Cylindrical Roller bearing, that makes the machine run in steady state

8. Special design that makes machine easy to adjust when change the sheet thickness.

Applications

Book Cover

Durable and protective, perfect for showcasing andsafeguarding books of all sizes.

Glft Boxes

Beautifully crafted containers to enhance thepresentation of special gifts.

Handbag

Stylish and functional, ideal for everyday use orspecial occasions.
