Product Description
Technical Parameters
|
Model |
SKFJ-500E |
|
Max Width |
500mm |
|
Paper thickness |
80~500g/㎡ |
|
Laminating Speed |
0-60m/min |
|
Gross Power |
3KW |
|
Unwinder Diameter |
600mm |
|
Rewinder Diameter |
660mm |
|
Overall Dimensions |
1510x1250x1150mm |
|
Weight |
300kgs |
Component Introduction
|
1. Auto glue feeding system |
|||
 |
|||
|

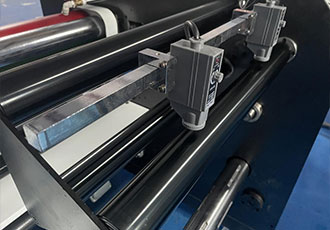

2. Sensor for auto stop when run out materials |
|||
 |
|||
|
3. Web guide system |
|||
 |
|||
|
4. Glue Tank |
|||
 |
|||
|
5. Air shaft device for film loading |
|||
 |
|||
|
6. Unwinder shaft |
||||
 |
||||
Applications
