Product Description
Technical Parameters
|
Model |
SKFJ-500G |
|
Max Width |
500mm |
|
Paper thickness |
80~500g/㎡ |
|
Laminating Speed |
0-100m/min |
|
Gross Power |
15KW |
|
Unwinder Diameter |
600mm |
|
Rewinder Diameter |
660mm |
|
Overall Dimensions |
1500*1300*1500mm |
|
Weight |
700kgs |
Component Introduction
|
1. Auto hydraulic pressure system |
|||
 |
|||
|

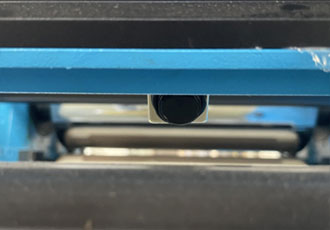

2. Sensor for auto stop when run out materials |
|||
 |
|||
|

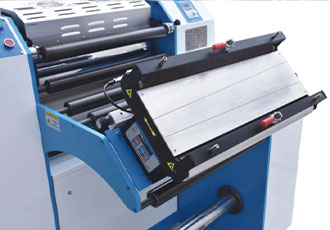

3. Web guide system |
|||
 |
|||
|

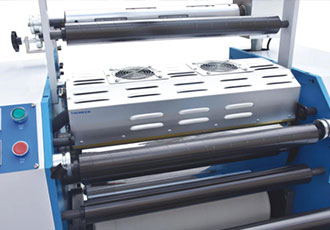

4. Electromagnetic heating |
|||
 |
|||
|

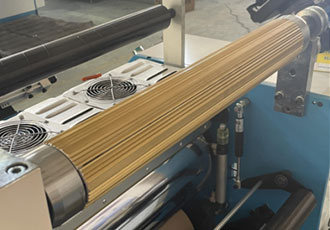

5. Air shaft device for film loading |
|||
 |
 |
||
|
6. Unwinder shaft |
||||
 |
||||
|
7. Double arm for rewinder shaft |
|||
 |
|||
Applications
